ATOTO F7G211XE 10.1 Inch Double Din Car Stereo with in-Dash Navigation, Wireless CarPlay & Android Auto, 1280×720 QLED Display, MirrorLink, Bluetooth, HD LRV, SXM Ready, Quick Charge, USB/SD (Up to 2TB)
ATOTO F7 XE Car Stereo Receiver - The Wireless Life
Product Information
- Product Version: F7 Extreme Edition (XE). Model: F7G211XE-N; Operating System: Linux 4.9.217; Mounting style: IAH10D (Integrated & Adaptive Head Unit with a 10.1-inch Display)
- Supports WIRELESS & wired CarPlay and WIRELESS & wired Android Auto (compatibility information is specified in the corresponding sections below) (IMPORTANT: For wired Android Auto/CarPlay connection, users should use the factory/original USB cable that came with the phone, non-manufacturer-made USB cables may lead to connection issues like a black screen, or an unstable connection.)
- Full HD 10.1" 1280*720QLED display screen with a 178° full-viewing angle (brightness 600cd/m2); 5-Touch Capacitive Touchscreen; Compatible with SiriusXM (a Connect Vehicle Tuner and subscription are required)
- Bluetooth 5.0, supports hands-free calls and streaming music; safer driving when you can answer calls/hang up, play/pause, switch tracks, adjust the volume, etc. on the car stereo, with the steering wheel controls, or with ATOTO AC-44F5 wireless IR remote; Radio tuner: Built-in FM/AM Radio Tuner with RBDS
- HD 720P rearview video display with Live Rear-View (LRV) feature (ATOTO AC-HD02LR rear-view camera is required, sold separately); Built-in pre-amplifier: max. 4*49W with RMS 4*29W (Vcc=14.4v, THD=10%); 10-band EQ with 7 presets
- GPS/Navigation: F7G211XE-N comes with a specific hardware solution to integrate iOS CarPlay or Android Auto into its system so that you can run iOS Maps or Google Maps/Waze on the big HD screen, as long as they are available on your phone
- Fast charging: powered by inner PMS firmware, F7G211XE-N can deliver power to smartphones faster (max. 1.5 A) than other car stereo brands (300mA - 500mA) while running wired CarPlay/Android Auto; data transmission & phone charging can be done simultaneously

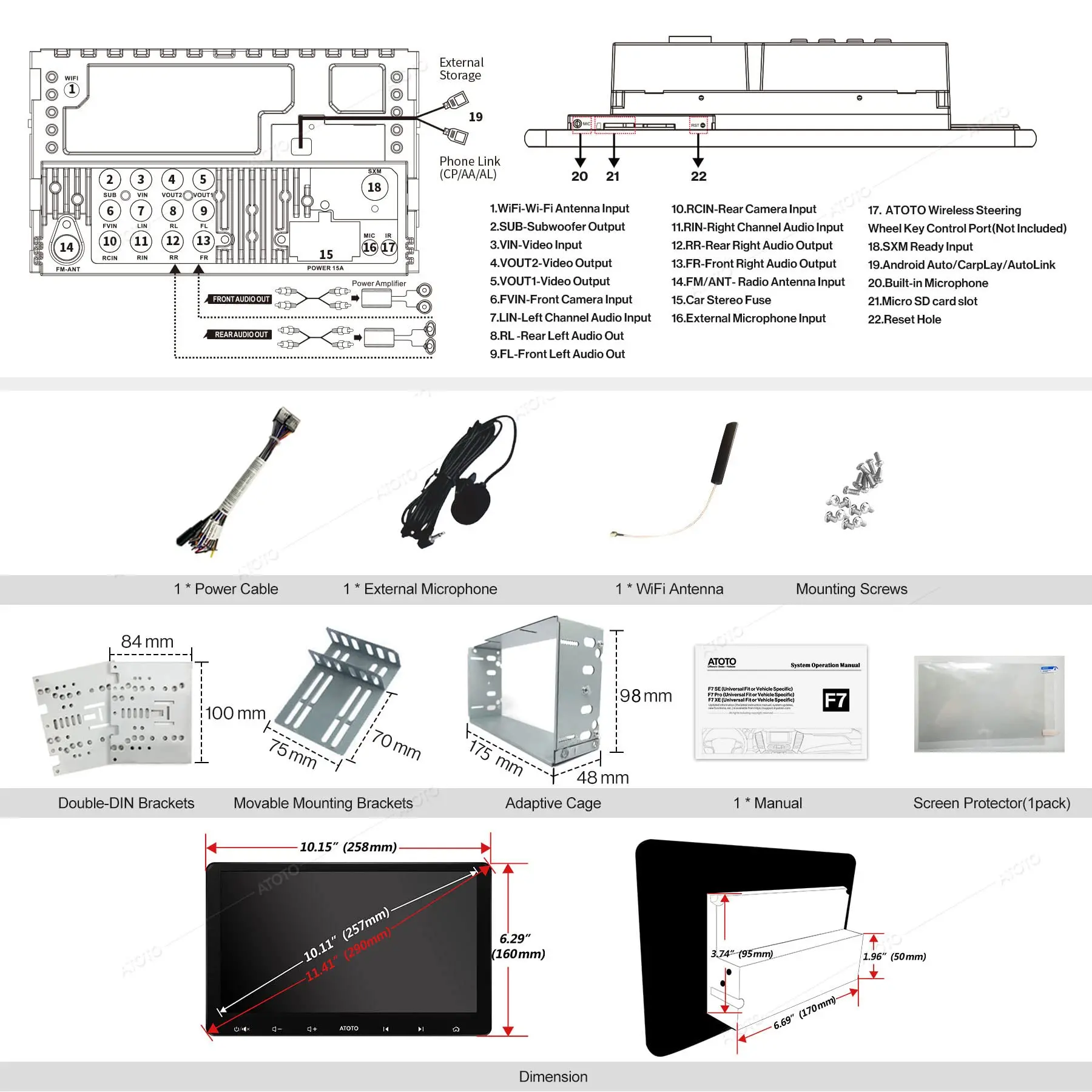

Inputs, Outputs & Slots
- 3 video inputs, Reversing Camera Input, AUX Audio/Video In & Front Camera Video In, can process 720P HD video signals. For reversing camera input, you can connect a specified ATOTO HD rearview camera to F7G211XE-N for 720P video display (most other car stereo brands can only process CVBS 480-600 lines video signals); For F7 XE head units, the specified rearview camera is AC-HD02LR (sold separately); AC-HD03LR is not compatible
- 2 RCA Headrest Video Outputs; 4-CH RCA Audio Out (2v) for connecting to a factory/aftermarket amplifier; Separate Subwoofer Out (0.8 v) One Micro SD slot - to store media files, up to 512GB; 2 USB interfaces - one for phone connection (CarPlay/Android Auto/AutoLink) and one for external storage devices and media playback. The latter reads up to 2TB SSD. Both SD & SSD must be in FAT32 or NTFS format
Vehicle Fit:
- F7G211XE-N is a universal double DIN head unit. It can be installed in vehicles that have a standard double DIN dashboard opening. Plus, with YO-FUNG vehicle-specific installation dash kits (wiring harness, data interface, mounting kit), it offers a more integrated & OEM Factory-style look after installation. Over 200 vehicle models have the opportunity to complete the OEM factory-style installation.
- On few vehicles, the edges of the 10.1-in display part may block air vents, the emergency switch, or other buttons located around the double-DIN opening, resulting in inconvenience. Be sure yours won't have such a problem, or that you are fine with it.
- Extra accessories may be required to finish installation in a specific vehicle (not provided in the package). It is the buyer's responsibility to prepare them (if applicable). They may include (but are not limited to) a dash frame kit, a wiring harness, a radio antenna adapter, a CANBUS data interface, etc.

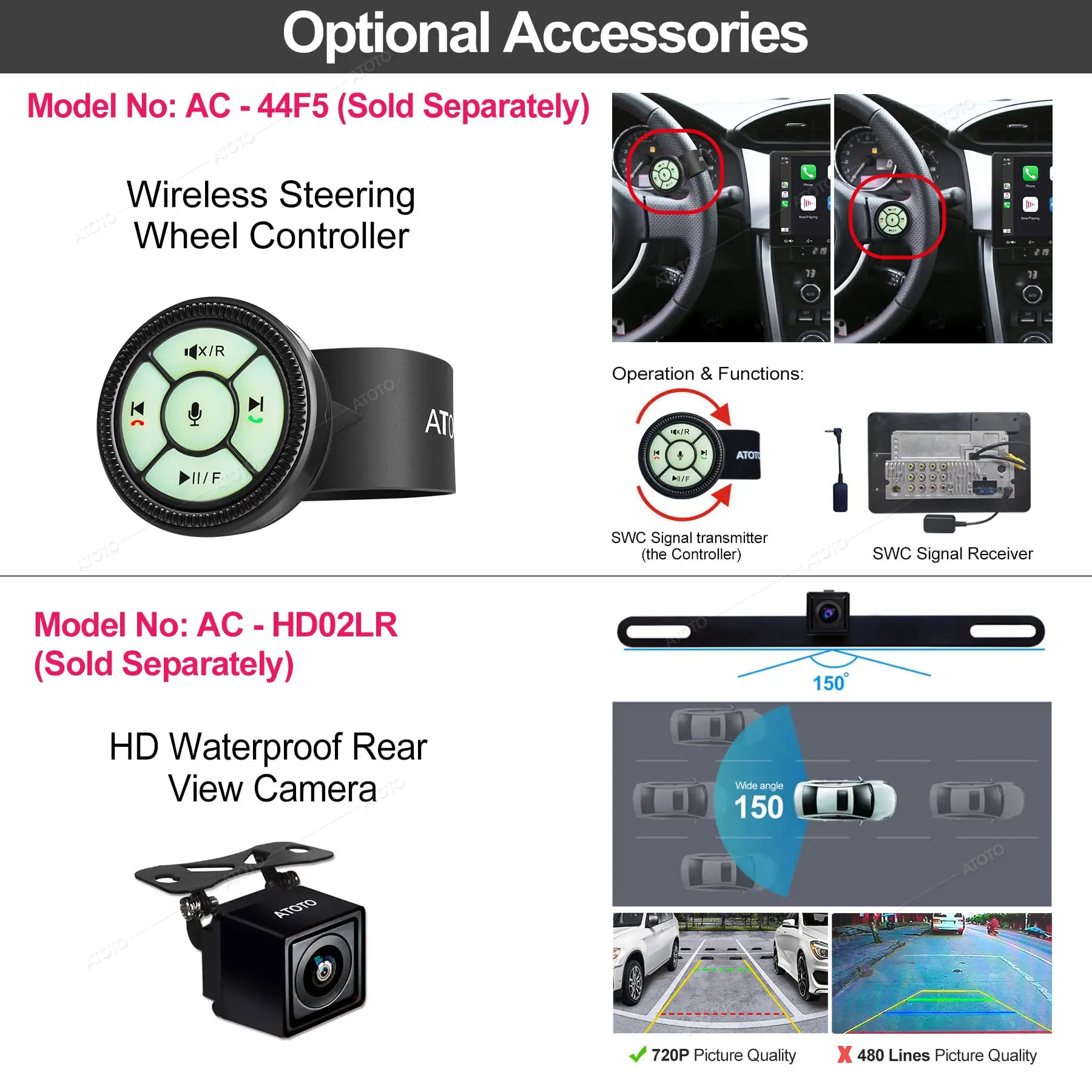

Notice: Optional parts for working with ATOTO F7 are sold separately: 1. ATOTO CA-AEC01 Compact 4 Channel Car Amplifier (47 watts RMS x 4); 2. ATOTO CA-AEC02 Plug-n-Play 4 Channel Car Amplifier (60 watts RMS x 4); 3. ATOTO AC-44F5 Steering wheel control IR Remote; 4. ATOTO AC-HD02LR Live Rear-view Camera (F7 is NOT compatible with AC-HD03LR); 5. ATOTO AC-HAV50 HDMI to AHD Video Converter, Support HDMI 1.4. Compatible with Play Station game consoles, TV Boxes, and other devices with HDMI output; 6. ATOTO CS-101SW 10" Slim Amplified Subwoofer, 400 Watts MAX peak power, 150 Watts MAX RMS power, with low & high-level inputs and remote bass control, compatible with most vehicle models. All ATOTO optional accessories/parts can be found here: amazon.com/atoto.
WIRELESS CarPlay and Android Auto!
The advantages of CarPlay /Android Auto on F7 XE
1. Wireless is simply better.No more worries about where to put your plugged phone. No more search for a holder which you find to be superfluous anyway. No more entangled cords to distract you. Free at last!
2. Fast and automatic connection For wireless CarPlay /Android Auto, the Buetooth connection is quick. And after you make the connection for the first time, it will all be automatic. For wired CarPlay /Android Auto, once you plug your ios Phone/Android phone into the "Phone Link" port on F7 XE, it takes about 3 seconds for CarPlay/Android Auto to be automatically launched. A true plug-n-play function.
3. Stable data transmission Thanks to the premium hardware inside, F7 XE is more than capable of delivering stable and reliable data transmission, both wirelessly (Wi-Fi) and wiredly (with USB), which is a strong bolster for you in driving.
4. Great Performance Across All CarPlay/Android Auto Functions CarPlay/Android Auto has revolutionalized the way we drive by enabling us to safely use the ios Phone/Android phone while driving. Now we can make calls, send/receive messages, listen to music/radio/podcasts/news/audiobook... on the car stereo while driving really conveniently. This, in turn, requires a car stereo that can adequately meet the demands of these functions in terms of audio and visual performance.
On F7 XE, the max. 4*49W amplifier with RMS 4*29W (Vcc=14.4v,THD=10%) makes sure that whether you are making a call, listening to your favorite music or podcasts and so on, you can hear things clearly at a comfortable volume, powerful yet without any distortion. And the included microphone? Well, in our own customer's exact words:"I'm told that the sound is very clear."
Visually, the full HD 10.1" 1280*720 QLED screen (brightness 600cd/m2), other than its fantastic ultra-clear color rendition, offers great visibility even in broad daylight. Also, as a 5-touch capacitive touchscreen, it is easy and smooth to operate on.
5. You phone battery is finally safe. If you get in the car with low battery on your ios Phone/Android phone, and you start driving using CarPlay/Android Auto, on many car stereos with only wired CarPlay/Android Auto, after the trip, the battery is barely charged, if at all. This problem does not exist with F7 XE. The reasons are
a) with wireless CarPlay/Android Auto, you can drive using CarPlay/Android Auto while plugging your ios Phone/Android phone into the USB port dedicated for charging in your vehicle, or putting it on the charging dock station.
b). with wired CarPlay/Android Auto, by design, F7 XE is equipped with advanced PMS to charge your ios Phone/Android phone quickly when you use wired CarPlay/Android Auto (plugged into the dedicated "Phone Link"port).
6. ATOTO F7 supports running CarPlay or Android Auto map navigation while playing FM/AM radio/USB music in the background. Be aware that not all car stereos can do this!
Important:
1. Wired CarPlay is compatible with iPhone 5 or later models with iOS 7.1 or higher. Wireless CarPlay is compatible with iPhone 5 or later models with iOS 9.0 or higher.
2. Android Auto phone compatibility: Wired Android Auto is compatible with phones running Android 6.0 or higher. For wireless Android Auto, Compatible with Any Phone with Android 11.0, and Compatible with Samsung and Google phones with Android 10.0 (Google Pixel 4, Note 9, Note 20, and S10 have been tested to be compatible with wireless Android Auto on F7 WE). It also Compatible with below Samsung phones with Android 9.0 (S8 and Note 8 have been tested to be compatible with wireless Android Auto on F7 WE).
3. If you choose to use wired CarPlay or wired Android Auto, for fast charging, for instance, factory/original USB cables are required. Non-manufacturer made USB cables may easily cause connection issues, such as black screen after minutes of playback, connection failure or unstable phone connection.

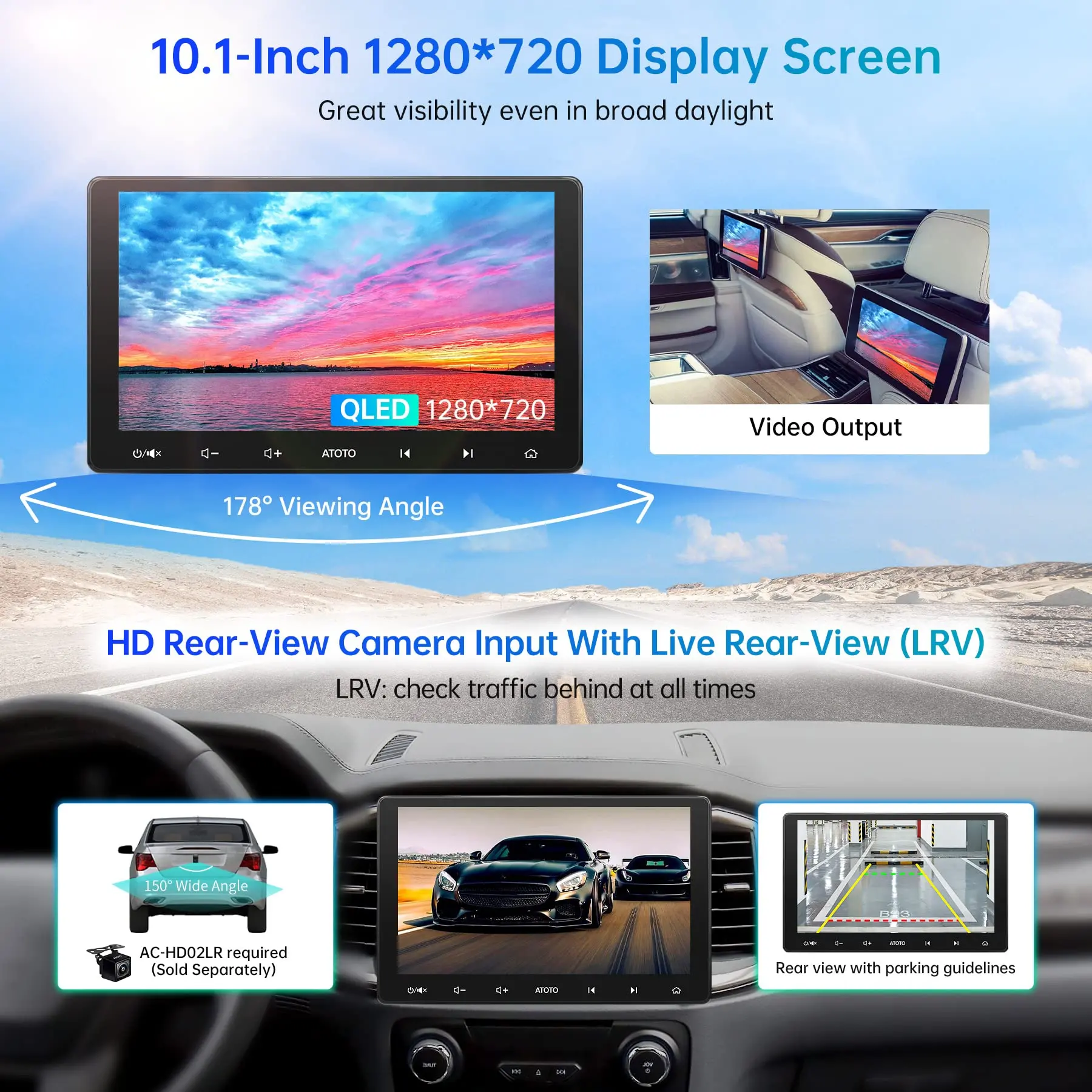

178° full-viewing angle 1280 * 720 QLED display screen, outstanding viewing experiences
The QLED display technology is an innovation best known for its outstanding color rendition and brightness.
Coming with a 10.1-inch 1280 * 720QLED display screen with a 178° full-viewing angle, F7G211XE-N offers a much better viewing experience in brightly lit areas. In addition, important app tips such as navigation prompts can be viewed more clearly.
AutoLink (MirrorLink) allows you to cast what's displayed on your smartphone to F7's big screen
You can run online GPS navigation apps (Google Maps, Waze, etc.) or play videos on Youtube, etc. on F7G211XE-N's 10.1-inch screen. AutoLink is compatible with the latest Android & iOS smartphone models.
Considering that neither CarPlay nor Andriod Auto is compatible with video apps such as YouTube, AutoLink provides an alternative option. Important: Some video streaming services (Netflix, AMZ Prime, etc.) do not support MirrorLink.
Note:
1. With very few smartphones with a curved screen, there will be a tiny black area on the 4 edges of F7G211XE-N's screen. This is caused by differences in firmware and the layout of the curved screen. 2. Linux system does not support third-party application downloads.
HD 720P rearview video display with Live Rear-View (LRV) feature
Typically, car stereos can only process and display 480-600 lines CVBS rearview video signals. F7G211XE-N displays HD 720P rearview videos (ATOTO AC-HD02LR rearview camera is required, sold separately). Say goodbye to snowy static pictures when reversing your vehicle.
Live Rear-View (LRV) - Now you can access the rear view even if your vehicle in moving ahead. This frees you from obstructions of passengers, headrests and the vehicle's roof and rear pillars, increasing the field of view and offering the driver a clear view of the lanes behind and common blind-spots. You can set one of the steering wheel keys as a shortcut for quick access.

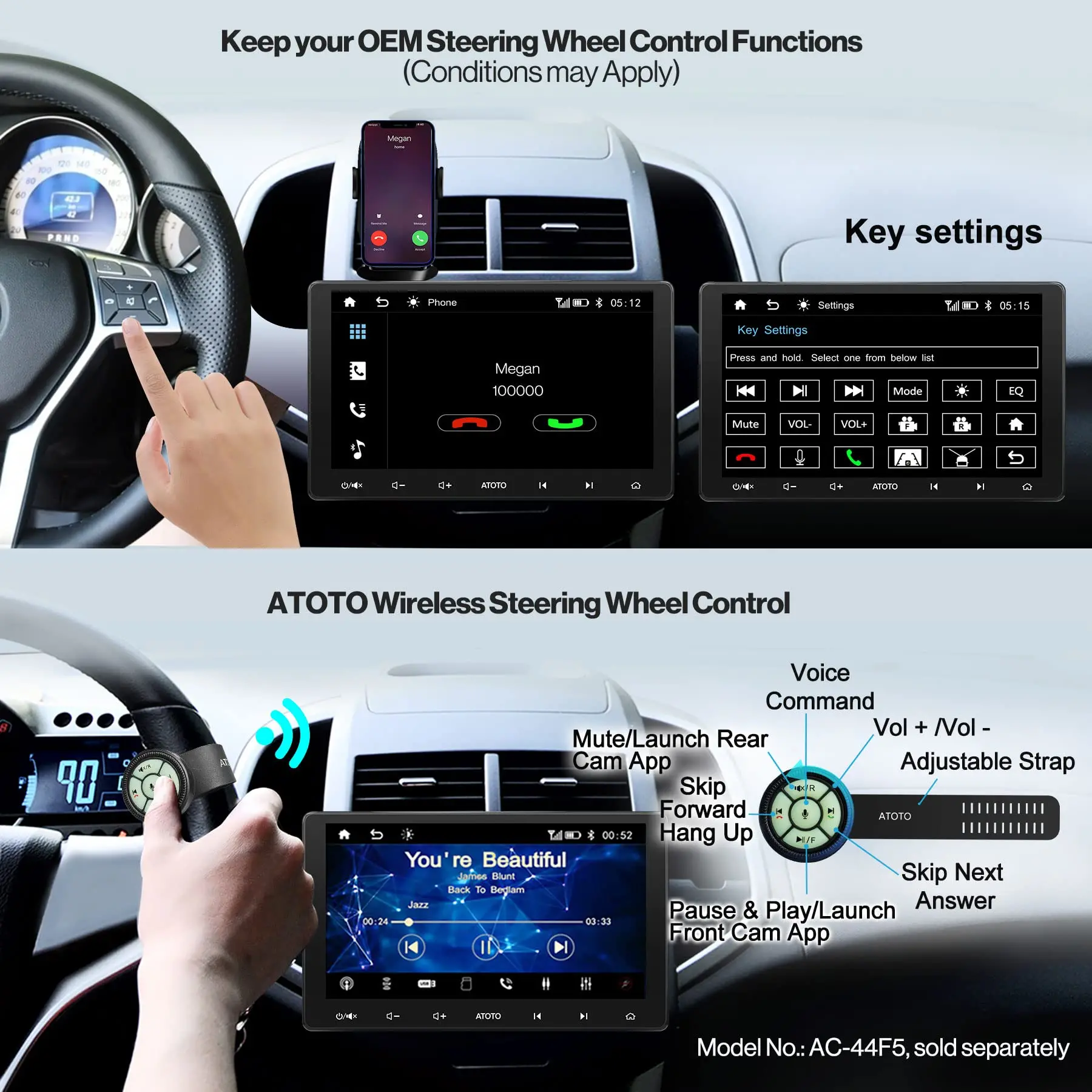

It is easy to control/operate your ATOTO F7!
While driving, reaching over and trying to operate the head unit can be distracting. F7G211XE-N makes it possible to map 18 frequently-used functions to factory steering wheel audio keys for convenient operation. For vehicles without steering wheel audio controls, ATOTO AC-44F5 wireless IR remote is highly recommended. It does not, however, support key mapping (refer to its manual for details).
You can wake up Siri or Google Assistant by voice command, by pressing the physical key on F7G211XE-N, or by pressing the corresponding button on your steering wheel (if applicable) or on AC-44F5.
Bluetooth Hands-free and A2DP Bluetooth Stream
Bluetooth enabled for wireless hands-free calling and speaker listening when paired with a smartphone.
Wirelessly stream audio via Bluetooth so you can listen to streaming music services such as Spotify and Pandora and control the track & volume up/down and play/pause through your system.
Users can see music ID3 tag information on the BT Music display.
USB audio/video playback & video outputs for headrest monitors
- Built-in music/video player allows users to play back high quality audio and max. 1080P videos on F7G211XE-N. All you need to do is hook up an external USB storage device or a Micro SD card with media files on it! It supports up to 512GB MicroSD & 2TB (2048GB) USB SSD for multimedia playback.
- Built-in video outputs in the back allow users to connect up to 2 monitors to F7G211XE-N. The kids in the back seat will certainly love it!
Fast Phone Charging While Plugged-in
Powered by inner PMS firmware, ATOTO F7 can deliver power to smartphones faster than other car stereos (300mA - 500mA) while running wired CarPlay/Android Auto (Max. 1.5A). Data transmission & phone charging can be done simultaneously.
Maximal charging speed is determined by the charging protocol of the phone and the length and the materials of the charging cable.
Constant Firmware Update From ATOTO
- Product Care: 12 m0nths included from purchase. Reach out for an extra 6 m0nths. Our cust0mer care team, details in the box, is available around the clock on workdays. See package details for the online manual in different languages.Registering products helps you obtain support easily with top priority as we can access the initial order details & the product SN code.
- ATOTO has been continuously improving the system firmware of the F7 series every a few months once necessary. Get continued firmware updates when available to reduce bugs and add new features.
- Find notification about available firmware updates at ATOTO Online Product Care System. See package details for the online manual in different language.
 F7 WE
|
 F7 XE
|
 F7 XE
|
 A6 PP
|
 S8 MS
|
 S8 PM
|
|
|---|---|---|---|---|---|---|
| System | Sealed Core System | Sealed Core System | Sealed Core System | Android | Android | Android |
| Display Screen | 7 inch: IPS 1024X600, full touchscreen | 7 inch: QLED 1024X600, buttons | 10 inch: QLED 1280X720, full touchscreen | 7 inch: QLED 1280X720, full touchscreen | 7 inch: QLED 1024X600, full touchscreen | 10 inch: QLED 1280X720, full touchscreen |
| Phone Link | Wireless CP and Android Auto; Wired CP and Android Auto; Wired Phone Mirroring | Wireless CP and Android Auto; Wired CP and Android Auto; Wired Phone Mirroring | Wireless CP and Android Auto; Wired CP and Android Auto; Wired Phone Mirroring | Wireless CP and Android Auto; Wired CP and Android Auto; Wired & Wireless phone link | Wireless CP and Android Auto; Wired CP and Android Auto; Wired & Wireless phone link | Wireless CP and Android Auto; Wired CP and Android Auto; Wired & Wireless phone link |
| TrackHU GPS Tracking APP | × | × | × | ✓ | ✓ | ✓ |
| Phone Quick Charge | Refer to product details | ✓ | ✓ | × | × | × |
| Network Connection | × | × | × | WiFi hotspot, Bluetooth & USB Network Tethering | WiFi Hotspot, Bluetooth/USB Tethering network, and Built-in 4G Cellular Modem (with in-car WiFi feature) | WiFi hotspot, Bluetooth & USB Network Tethering |
| Built-in Preamplifier | Built-in Max 4*45W Amplifier with RMS 4*24W | Built-in Max 4*49W Amplifier with RMS 4*29W | Built-in Max 4*49W Amplifier with RMS 4*29W | Built-in Digital Signal Processor Max 4*45W Amplifier with RMS 4*24W | Built-in Digital Signal Processor Max 4*45W Amplifier with RMS 4*24W | Built-in Digital Signal Processor,and Toshiba Powerful pre-amplifier IC (4x49 Maximal, 4x29 RMS),support 2Ω,4Ω & 8 Ω speakers |
| Bluetooth Hardware | Bluetooth with SBC codec | Bluetooth with SBC codec | Bluetooth with SBC codec | Dual Bluetooth | Dual Bluetooth | Dual Bluetooth,(BT1 with aptX,aptX HD) |
| Inputs & Outputs | 3 Video Inputs; 2 RCA Video playback can be output | 3 Video Inputs; 2 RCA Video playback can be output | 3 Video Inputs; 2 RCA Video playback can be output | 3 Video Inputs; Extra USB-to-RCA or USB-to-HDMI adapter required for Video Output | 3 Video Inputs; Extra USB-to-RCA or USB-to-HDMI adapter required for Video Output | 3 Video Inputs; Extra USB-to-RCA or USB-to-HDMI adapter required for Video Output |
| Rearview Camera Video Input | HD 720P Rearview Camera Input with Live Rearview (LRV) feature | HD 720P Rearview Camera Input with Live Rearview (LRV) feature | HD 720P Rearview Camera Input with Live Rearview (LRV) feature | HD 720P Rearview Camera Input with Live Rearview (LRV) feature | HD 720P Rearview Camera Input, support Virtual Surround View parking assistance technology and Live Rearview feature | HD 720P Rearview Camera Input, support Virtual Surround View parking assistance technology and Live Rearview feature |
Original: $244.90
-65%$244.90
$85.72Product Information
