ATOTO AC-HD02LR 720P Rearview Camera - Live View, Night Vision, Waterproof, for X10/S8/F7/A6/A5 (Not for P5/P8/P9)

Applicable Headunit models:

  • AC-HD02LR: This AC-HD02LR works with A6 KarLink, A6 Performance, the F7 Series, S8Series and the X10 Series car stereos. It is NOT compatible with A6 Y, SA102, P5, P8, P8AI, P9 or any other car stereos. Besides, S8 models manufactured before Jan. 2021 (also known as S8 Gen 1) can support AC-HD02LR, but the system firmware update is required before the LRV feature can work properly. See the rearview camera comparison table below for more details.

Specifications：

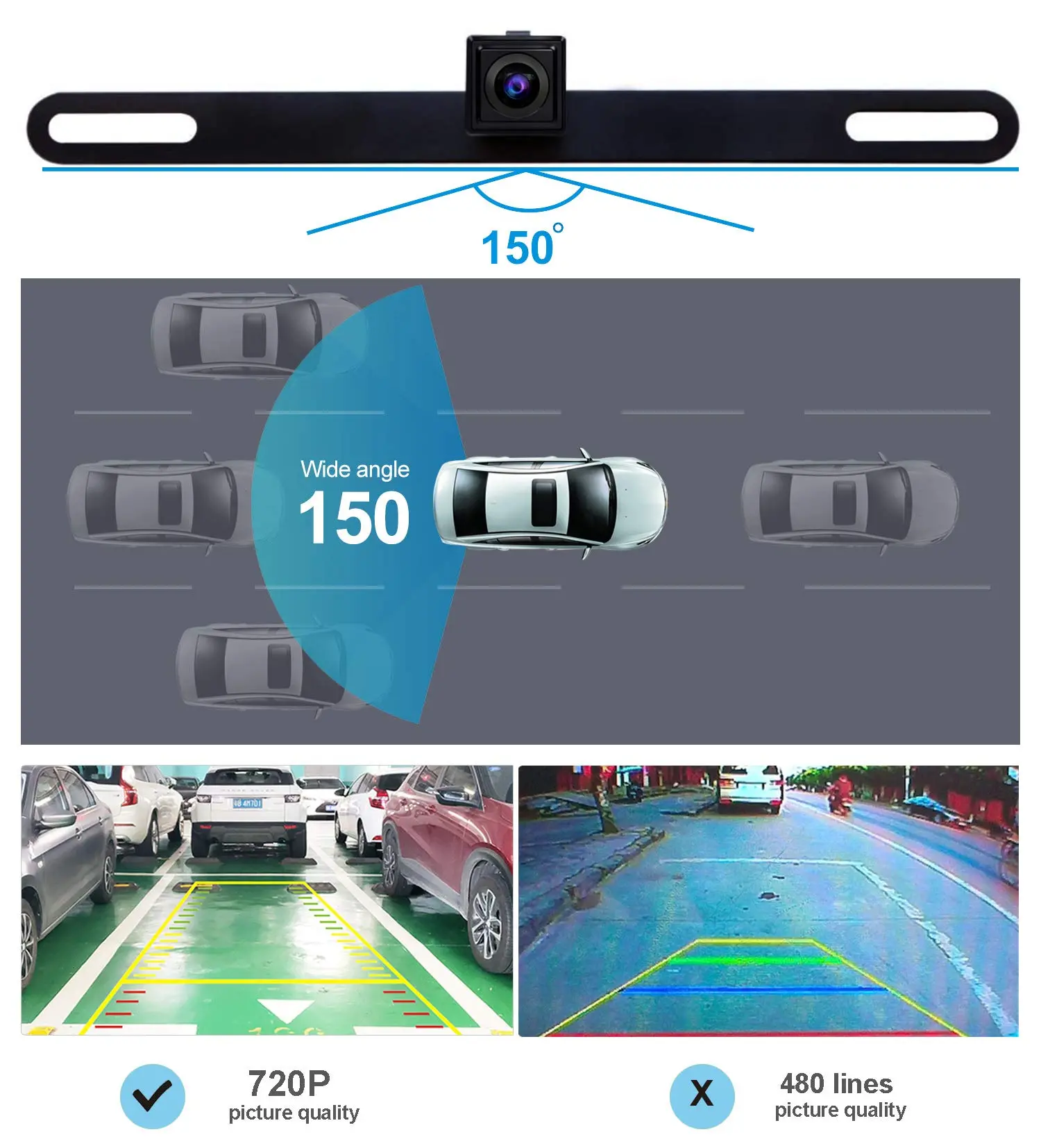

·Product Model: AC-HD02LR ·Image sensor format: 1/2.9” CMOS · Pixels：1280(H)x720(V) · White balance: automatic · Backlight compensation: Yes · Noise reduction: 3D DNR · Video Frame rate: 720P@30FPS · Video Signal Out：Analogue HD signal, 1.0 Vp-p / 75Ω · Working Voltage: DC 12V · Working Current: 130mA～150mA · Working Temperature：-30℃～+80℃ (-22°F ～ 176°F) · Rear-view guideline: Not built-in, provided by Car stereo system · Waterproof Rate: IP67 · Night-vision: YES ·Lens Viewing Angle: 150 Degrees

· Powering method: powered by ATOTO Headunit or vehicle's Accessory (ACC).

· Rearview Image Access: (1).When vehicle is in reverse gear, the rearview will display on the headunit display; (2). Manually run Rearview app when vehicle is moving ahead, or use steering wheel keys (if applicable). For selected S8 (Gen2) modes that come with Hand Gesture operation, gesture control is available;

HD 720

HD 720P Rear-View Video Signal Output

Traditional car stereos can only take and display 400-600 lines CVBS rearview video signal. Working with specific ATOTO head-unit models, The AC-HD02LR can output an HD 720P rearview video signal, and you can have an HD color display on the ATOTO headunit. Say goodbye to the snowy static picture screen when reversing a vehicle.

1

How does the LRV feature Work?

ATOTO LRV (Live Rear-View) technology

Live RearView (LRV) Feature - Access Rearview even if the vehicle is moving ahead. This could remove obstructions of passengers, headrests, and the vehicle’s roof and rear pillars, increasing field of view and allowing the driver an unimpeded view of the lanes behind and traditional blind-spots. To use this feature, special wiring is required, see below for reference.

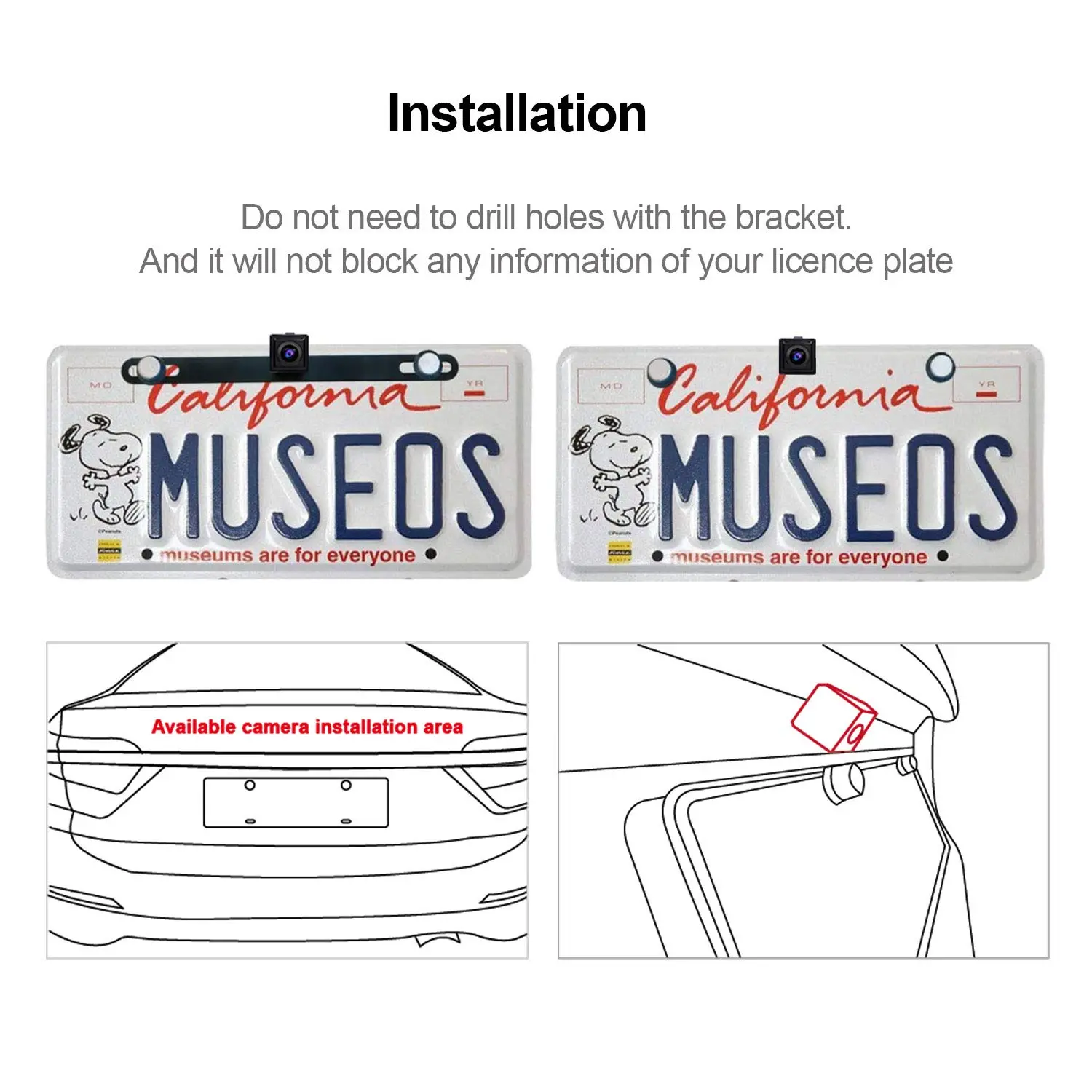

Easy Installation, compatible with selected ATOTO S8 (Gen2) models

CONNECTION

Unlike traditional backup cameras that are powered up by reversing lamp of the vehicle, AC-HD02LR is rewired to be powered by a head-unit or vehicle's ACC power (Accessory) wire. And built-in hardware in selected ATOTO head-unit is required to make sure camera's video signal can be read and displayed without putting your vehicle into reverse gear.

AC-HD03LR
AC-HD02LR
Product Model AC-HD03LR AC-HD02LR
Lens Viewing Angle 180 Degrees, supporting VSV 150 Degrees
Pixels 1280(H)x720(V) (HD 720P) 1280(H)x720(V) (HD 720P)
Live Rearview (LRV) Wiring Support YES YES
Compatibility with A6 PF NO YES
Compatibility with A102/YS102SL NO NO
Compatibility with F7 NO YES
Compatibility with S8 YES YES
Waterproof YES YES
Night-vision YES YES
$39.90
ATOTO AC-HD02LR 720P Rearview Camera - Live View, Night Vision, Waterproof, for X10/S8/F7/A6/A5 (Not for P5/P8/P9)—
$39.90

Product Information

Shipping & Returns

Description

Applicable Headunit models:

  • AC-HD02LR: This AC-HD02LR works with A6 KarLink, A6 Performance, the F7 Series, S8Series and the X10 Series car stereos. It is NOT compatible with A6 Y, SA102, P5, P8, P8AI, P9 or any other car stereos. Besides, S8 models manufactured before Jan. 2021 (also known as S8 Gen 1) can support AC-HD02LR, but the system firmware update is required before the LRV feature can work properly. See the rearview camera comparison table below for more details.

Specifications：

·Product Model: AC-HD02LR ·Image sensor format: 1/2.9” CMOS · Pixels：1280(H)x720(V) · White balance: automatic · Backlight compensation: Yes · Noise reduction: 3D DNR · Video Frame rate: 720P@30FPS · Video Signal Out：Analogue HD signal, 1.0 Vp-p / 75Ω · Working Voltage: DC 12V · Working Current: 130mA～150mA · Working Temperature：-30℃～+80℃ (-22°F ～ 176°F) · Rear-view guideline: Not built-in, provided by Car stereo system · Waterproof Rate: IP67 · Night-vision: YES ·Lens Viewing Angle: 150 Degrees

· Powering method: powered by ATOTO Headunit or vehicle's Accessory (ACC).

· Rearview Image Access: (1).When vehicle is in reverse gear, the rearview will display on the headunit display; (2). Manually run Rearview app when vehicle is moving ahead, or use steering wheel keys (if applicable). For selected S8 (Gen2) modes that come with Hand Gesture operation, gesture control is available;

HD 720

HD 720P Rear-View Video Signal Output

Traditional car stereos can only take and display 400-600 lines CVBS rearview video signal. Working with specific ATOTO head-unit models, The AC-HD02LR can output an HD 720P rearview video signal, and you can have an HD color display on the ATOTO headunit. Say goodbye to the snowy static picture screen when reversing a vehicle.

1

How does the LRV feature Work?

ATOTO LRV (Live Rear-View) technology

Live RearView (LRV) Feature - Access Rearview even if the vehicle is moving ahead. This could remove obstructions of passengers, headrests, and the vehicle’s roof and rear pillars, increasing field of view and allowing the driver an unimpeded view of the lanes behind and traditional blind-spots. To use this feature, special wiring is required, see below for reference.

Easy Installation, compatible with selected ATOTO S8 (Gen2) models

CONNECTION

Unlike traditional backup cameras that are powered up by reversing lamp of the vehicle, AC-HD02LR is rewired to be powered by a head-unit or vehicle's ACC power (Accessory) wire. And built-in hardware in selected ATOTO head-unit is required to make sure camera's video signal can be read and displayed without putting your vehicle into reverse gear.

AC-HD03LR
AC-HD02LR
Product Model AC-HD03LR AC-HD02LR
Lens Viewing Angle 180 Degrees, supporting VSV 150 Degrees
Pixels 1280(H)x720(V) (HD 720P) 1280(H)x720(V) (HD 720P)
Live Rearview (LRV) Wiring Support YES YES
Compatibility with A6 PF NO YES
Compatibility with A102/YS102SL NO NO
Compatibility with F7 NO YES
Compatibility with S8 YES YES
Waterproof YES YES
Night-vision YES YES
